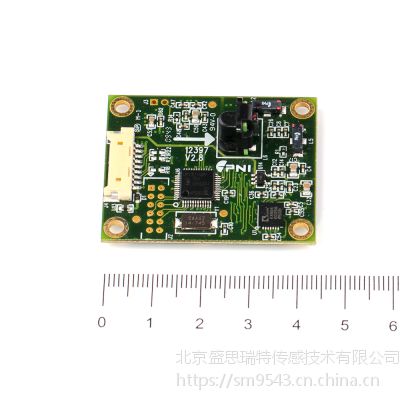

型号：TCM-XB 电子罗盘

轴数：三轴

航向精度：0.3°rms

倾斜量程：±90/180°

倾斜精度：0.2°rms

采样率：30Hz

电流：18mA

供电电源：3.6-5V

工作温度：-40~85°C

尺寸cm：3.5x4.3x1.3

Pinpoint-accurate pitch, roll, and compass heading in real-world conditions, performing reliably and repeatably in the field, not just in the factory. Ideal for far-target locators, range finders, and seismic monitoring.

Sub-1? accuracy in real-world conditions

Where GPS is compromised or unavailable — whether underwater or underground, beneath a bridge or inside a building — PNI’s TCM tilt-compensated 3-axis compass module provides reliable, pinpoint-accurate pitch, roll, and compass heading. The TCM uses advanced algorithms to counter the effects of hard and soft iron distortions in the host system, providing highly accurate heading information in virtually any environment and any orientation. PNI’s patented geomagnetic sensors and pioneering measurement technology combine to provide all this performance under a low power budget that extends mission duration. The TCM’s unmatched performance in real-world conditions makes it ideal for applications that require consistency and accuracy in the field.

Sub-1° accuracy…

The TCM is a high-performance, low-power-consumption, tilt-compensated compass module that provides industry-leading heading accuracy. The TCM combines PNI’s patented 3-axis geomagnetic sensors and 6-axis MEMS accelerometer with PNI’s proprietary factory calibration algorithms to ensure absolute accuracy.

…in real world conditions

PNI recognizes there’s a difference between performing well in the factory and performing well in the field. The TCM’s advanced field calibration algorithms account for these differences by correcting for local magnetic distortions. And since applications may have physical constraints for doing calibration, the TCM provides four user-selectable calibration modes, as well as the ability to recalibrate the accelerometers to ensure long-term accuracy. The TCM’s measurement technology inherently ensures the module is free from offset drift and provides high measurement resolution, which is critically important at high and low latitudes where the dip angle (inclination) limits the usefulness of other compasses. So the TCM performs well in the field, not just in the factory.

电子罗盘应用范围

机器人

爆炸军械布置(EOD)

边界岗哨自动搜索和营救

海洋研究

气象绘图

武器探测和除暴海岸钻控平台服务

海洋学勘测

位置&救助

建筑物监控

矿物搜索

声纳浮标(洋流图、水下安全系统、海洋种群追踪)

电子战场(训练、模拟分析战况、战略战场信息管理、武力监测、绘图分析和武器方位)

无人移动体传感

放射品、化学物品、生物体漂移监测

边办安全监控

车载与手持岗哨

军用激光测距仪

***测量数据收集仪器

石化探测和开采

采矿

钻孔分析

管道监测

地震倾角传感

快速卫星捕获

微波发身方向

卫星信息获取（SNG）

天线平台倾角传感

射击位置监测系统

驾驶循迹系统
